Steam Turbines
Howden Turbo incorporates the heritage of Kühnle, Kopp & Kausch and Peter Brotherhood. From standard configurable steam turbines to fully custom-engineered solutions across a range of applications.
Howden Turbo incorporates the heritage of Kühnle, Kopp & Kausch and Peter Brotherhood. From standard configurable steam turbines to fully custom-engineered solutions across a range of applications.
Steam turbines up to 24MW increase the efficiency of power generation and improve the profit ability of industrial and mechanical drives, e.g. pumps and compressors. Custom engineered units up to 40MW for principal applications including Waste to Energy, oil and gas, sugar industry and offshore (FPSO, FLNG, and FSRU).
Providing a safe, efficient and low environmental impact power and waste to energy solution across a wide range of industries including chemicals, refining, steel, food and beverage, wood, paper, marine, offshore and more. With >100 years experience and >20,000 installations worldwide, we boast a comprehensive range, extensive capabilities, unrivalled expertise and a proud heritage.
The Base is a single-stage impulse steam turbine acting as a generator drive and specially designed for the 75-1000 kW output range. Featuring a simple, extremely compact design, it has short start-up times and a high degree of operational reliability. The BASE machine is delivered as a pre-tested package unit with turbine, gear, generator, oil unit, control and protection unit as well as circuit breaker, built on a common base frame.
The CORE is a compact solution for up to 6000 kW output range. They are characterised by robust construction and a high degree of operational reliability. They are ideal for saturated steam service. Their suitability for use as condensing or back pressure turbines in combination with various integral gear modules opens up a broad range of applications. As such, they are used for mechanical drives and for power generation. Perfectly suitable for packing companies/EPC who complete the unit for their customers.
The MONO has a power output up to 6000 kW, and the option to have a special multistage condensing module. As a multistage the MONO can reach 24MW. They are characterised by robust construction and a high degree of operational reliability. They are ideal for saturated steam service. Their suitability for use as condensing or back pressure turbines in combination with various gear modules opens up a broad range of applications. This includes applications with stringent standard requirements such as API 611/612 and ATEX.
The TWIN is a compact solution for up to 7000 kW output range. The TWIN series are dual casing turbines on one gearbox, which can run on different steam lines. The TWIN provides the highest cost efficiency and high performance. It allows high heat gradients to be reduced while providing a controlled extraction capability. ATEX version available.
The TRI is a compact solution for up to 12000 kW output range. The TRI allows three turbines to be connected to the integrated gear. Like the TWIN this allows the TRI to run on different stream lines or provides up to two controlled extractions.
The TRI series are dual casing turbines on one gearbox, which can run on different steam lines. The TRI provides the highest cost efficiency and high performance. It allows high heat gradients to be reduced while providing a controlled extraction capability. ATEX version available.
Howden offers a suite of customer support services for all of their products, which ensure customers have full OEM support throughout the entire lifecycle. This incorporates standard maintenance and scheduled overhauls as well as modifications for duty changes or life extension. Through our wider aftermarket organisation, we can offer a wide range of services for turbomachinery regardless of manufacturer.
The Base is a single-stage impulse steam turbine acting as a generator drive and specially designed for the 75-1000 kW output range. Featuring a simple, extremely compact design, it has short start-up times and a high degree of operational reliability. The BASE machine is delivered as a pre-tested package unit with turbine, gear, generator, oil unit, control and protection unit as well as circuit breaker, built on a common base frame.
The CORE is a compact solution for up to 6000 kW output range. They are characterised by robust construction and a high degree of operational reliability. They are ideal for saturated steam service. Their suitability for use as condensing or back pressure turbines in combination with various integral gear modules opens up a broad range of applications. As such, they are used for mechanical drives and for power generation. Perfectly suitable for packing companies/EPC who complete the unit for their customers.
The MONO has a power output up to 6000 kW, and the option to have a special multistage condensing module. As a multistage the MONO can reach 24MW. They are characterised by robust construction and a high degree of operational reliability. They are ideal for saturated steam service. Their suitability for use as condensing or back pressure turbines in combination with various gear modules opens up a broad range of applications. This includes applications with stringent standard requirements such as API 611/612 and ATEX.
The TWIN is a compact solution for up to 7000 kW output range. The TWIN series are dual casing turbines on one gearbox, which can run on different steam lines. The TWIN provides the highest cost efficiency and high performance. It allows high heat gradients to be reduced while providing a controlled extraction capability. ATEX version available.
The TRI is a compact solution for up to 12000 kW output range. The TRI allows three turbines to be connected to the integrated gear. Like the TWIN this allows the TRI to run on different stream lines or provides up to two controlled extractions.
The TRI series are dual casing turbines on one gearbox, which can run on different steam lines. The TRI provides the highest cost efficiency and high performance. It allows high heat gradients to be reduced while providing a controlled extraction capability. ATEX version available.
Howden offers a suite of customer support services for all of their products, which ensure customers have full OEM support throughout the entire lifecycle. This incorporates standard maintenance and scheduled overhauls as well as modifications for duty changes or life extension. Through our wider aftermarket organisation, we can offer a wide range of services for turbomachinery regardless of manufacturer.
Proven experience
Scope of supply
Providing the complete service – from initial concept development to installation and commissioning with total after sales support and on-site maintenance.
Covering a range of applications in marine, offshore production, petrochemical, waste to energy, Combined Heat and Power (CHP).
Customized Customer Care Agreements (CCA) are individually configured from our 5D support model incorporating:

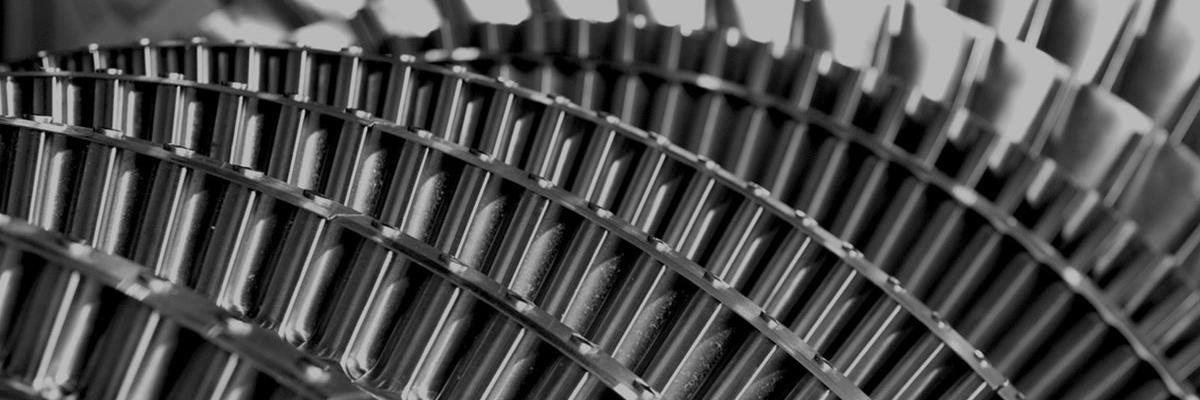

We use our OEM experience to carry out single and multi-stage steam turbine repairs, employing proven processes and techniques for assured machine reliability. Typical components include rotors, blades, diaphragms, steam control valves and casings.
Spare Parts
By providing spare parts through recommended spares lists and crisis delivery, we cover the spectrum from preventative to reactive maintenance.
As an OEM with >150 years we have the answer to non OEM and obsolete parts. As well as simply replicating items we can typically re-engineer and provide replacements that will improve the performance and reliability of your assets.
Industrial processes are subject to operational fluctuations where steam turbines need to react flexibly to process changes and to operate efficiently in part load or with fluctuating steam parameters. To optimize part load performance a method is developed to optimize the turbine and the control logic to the actual part load operating condition.
